Wondering how to align your garage door sensors? When your garage door refuses to close or keeps reversing unexpectedly, misaligned sensors are often the culprit. These small but critical safety devices can become knocked out of position through everyday use, leaving your door stuck open and your home vulnerable. The good news? Realigning garage door sensors is a straightforward DIY task that most homeowners can complete in under 30 minutes with basic tools.
This comprehensive guide walks you through identifying sensor misalignment, understanding why it happens, and following a proven step-by-step process to restore proper function. We’ll also cover when professional help is necessary to keep your garage door system safe and compliant.
What Garage Door Sensors Do & Why Alignment Matters
Garage door sensors, also called photo-eyes or safety sensors, are mandatory safety devices installed on modern automatic garage doors. These sensors prevent accidents and injuries by stopping or reversing the door if anything blocks its path during closing.
How Garage Door Sensors Work
The sensor system consists of two components mounted on either side of your garage door opening, typically four to six inches above the floor. One unit is the emitter (transmitter), which sends an invisible infrared beam across the doorway. The other is the receiver, which detects this beam.
When you close your garage door, these sensors create an invisible infrared light pathway across the opening. If the beam remains unbroken, the door closes normally. If something interrupts the signal—whether a person, pet, vehicle, or object—the safety mechanism triggers immediately, causing the door to stop or reverse direction.
This safety reversal system has prevented countless injuries since becoming standard equipment on garage door openers. Modern building codes and safety regulations require these sensors on all automatic garage door systems for residential and commercial properties.
Why Misalignment Causes the Door Not to Close
When sensors become misaligned, they can no longer maintain a clear line of sight between the emitter and receiver. Even a slight angle or vertical offset disrupts the infrared signal pathway. The garage door opener interprets this disrupted signal exactly as it would an actual obstruction—as a safety hazard requiring the door to stay open or reverse.
This safety compliance feature means your door won’t close until the sensor alignment is corrected, the signal pathway is restored, and the system confirms it’s safe to operate. While frustrating when you’re trying to leave or secure your home, this behaviour proves your safety mechanism is working exactly as designed. If your garage door stops halfway, these sensor alignment tips can help you quickly troubleshoot and fix the problem yourself.
Signs Your Garage Door Sensors Are Misaligned
Recognizing the symptoms of sensor misalignment helps you diagnose the problem quickly and avoid unnecessary service calls. Most systems provide clear visual and operational indicators when sensors aren’t communicating properly.
Common Symptom Breakdown
Door Won’t Close Completely: The most obvious sign is a garage door that descends partway then immediately reverses back up, or refuses to move downward at all when you press the close button.
Blinking Red Light: Many garage door openers feature a diagnostic light on the motor unit that blinks when the safety sensors detect a problem. Check your owner’s manual for the specific flash pattern indicating sensor issues.
Sensor Lights Off or Abnormal: Look at the LED indicators on the sensors themselves. Properly aligned sensors typically show steady green lights on both units, or one green and one amber/yellow. If either light is off, red, or blinking, alignment may be the issue.
Reversing Door: If your door closes successfully sometimes but reverses unexpectedly at other times, inconsistent sensor alignment or a partially obstructed beam could be responsible.
Remote Not Working: While the wall button might still trigger the door to open, the remote may seem unresponsive for closing operations when sensors are misaligned.
Beyond alignment issues, these symptoms can also result from dirty sensor lenses, damaged wires connecting the sensors to the opener, physical obstructions in the beam path, or faulty LED indicators signaling more serious electrical problems. Always check for obvious issues like debris or cobwebs before assuming alignment is the problem.
Why Garage Door Sensors Become Misaligned
Understanding the common causes of sensor misalignment helps prevent future issues and guides your troubleshooting approach.
Accidental Impact: The most frequent cause is something bumping into the sensors. This might be a bicycle, lawn equipment, sports gear, or even just backing a vehicle too close to the door track. Sensors mounted in high-traffic areas are particularly vulnerable.
Loose Mounting Brackets: Over time, the screws holding sensor brackets to the door track or wall can work loose from the constant vibration of the door opening and closing. Even a quarter-turn of looseness allows sensors to shift position.
Dirt and Debris Accumulation: While not technically misalignment, heavy dust, spider webs, or garage grime on sensor lenses can block the infrared beam just as effectively as physical misalignment.
Improper Installation: If sensors weren’t installed level and secure initially, they’re more likely to drift out of position during normal use.
Vibration from Door Operation: Particularly with older or unbalanced garage doors, the vibration from repeated opening and closing cycles can gradually shift sensor positions over months or years.
Pets and Kids: Curious children or pets playing near the garage door can accidentally knock sensors askew without anyone noticing immediately. While learning how to align your garage door sensors is important, understanding how the rest of your system works—such as torsion springs explained—can help you troubleshoot issues more effectively.
Step-by-Step Guide: How to Align Garage Door Sensors Safely
Follow these steps carefully to realign your garage door sensors. This process typically takes 15-30 minutes and requires only basic tools. If you’re uncomfortable working with your garage door system or encounter unexpected issues, contact a qualified technician for assistance.
Tools and Materials Needed
-
- Screwdriver (usually Phillips head)
- Level (2-4 feet long for best accuracy)
- String or thin rope (approximately 8-10 feet)
- Cleaning cloth
- Flashlight (for inspecting wiring)
- Ladder or step stool (if needed)
Step 1: Turn Off Power to the Garage Door System
Safety comes first when working with any electrical system. Locate your garage door opener’s power source—typically a standard electrical outlet near the motor unit or a dedicated circuit in your breaker box.
Unplug the opener from the outlet, or flip the dedicated breaker to the off position. This precaution prevents the door from activating unexpectedly while you’re working near the sensors and tracks. Although the sensors themselves use low-voltage electricity, disconnecting power eliminates any risk and provides peace of mind.
If you need to test the door during the alignment process, you can temporarily restore power, but always disconnect it again before making further adjustments. Consider wearing insulated gloves when handling any electrical components, even at low voltage.

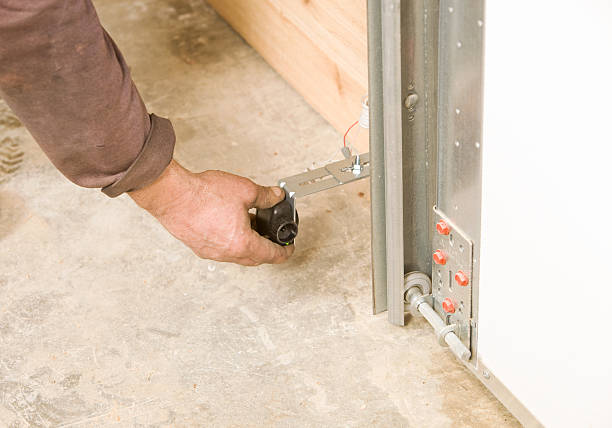

Step 2: Loosen the Sensor Mounting Screws
Examine how your sensors attach to the garage door tracks or wall. Most systems use metal mounting brackets with one or two screws holding each sensor in place. These brackets typically allow vertical adjustment while keeping the sensor securely attached.
Using your screwdriver, loosen the mounting screws on both sensors—but don’t remove them completely. You want the sensors loose enough to slide up and down or pivot slightly, but not so loose that they fall off the brackets. Usually, one to two turns of the screwdriver provides adequate looseness for adjustment.
Some sensor models use wing nuts, thumb screws, or slide-and-lock mechanisms instead of traditional screws. Adjust these according to your specific system, always maintaining enough tension to prevent the sensors from falling.
Step 3: Slide Sensors Down to Base Position
Gently slide both sensors downward within their mounting brackets until they rest at the lowest possible position. This creates a consistent starting point for alignment. The sensors should now be approximately four to six inches above the garage floor, which is the standard height for most systems.
Use your bare hands rather than tools for this adjustment to avoid over-tightening or damaging the sensor housings. The sensors should move smoothly within the brackets. If they stick or bind, apply slight pressure while wiggling gently until they move freely.
Ensure the sensor lenses face each other directly across the garage door opening. They should point straight ahead, not angled upward, downward, or to either side.
Step 4: Attach a String Between Sensors
Cut a length of string approximately 12-18 inches longer than the width of your garage door opening. Tie one end securely to the mounting bracket of one sensor, then stretch the string taut across to the opposite sensor and tie it to that bracket.
The string should run horizontally between the two sensors at the same height as the sensor lenses. This creates a visual reference line showing whether the sensors sit at exactly the same height and whether they’re level with each other.
Make sure the string is tight enough that it doesn’t sag in the middle. A sagging string gives a false reading and defeats the purpose of this alignment tool. If the string has noticeable slack, untie one end and retie it with more tension.
Step 5: Level the String and Adjust Sensors
Place your level on top of the stretched string. Check whether the bubble indicates the string is perfectly horizontal. If not, you need to adjust the sensors vertically until the string becomes level.
Carefully slide the lower sensor upward, or the higher sensor downward, making small adjustments until the level shows the string is perfectly horizontal. This process may require several small movements and rechecks with the level.
Once the string is level, verify that both sensor lenses align precisely with the string. The top edge or center point of each lens should touch or nearly touch the string. If one sensor lens sits higher or lower than the string, adjust that sensor until both lenses align with the string at the same height.
Take your time with this step. Precision matters more than speed. Even a few millimeters of misalignment can disrupt the infrared beam and prevent proper operation.
Step 6: Tighten Screws Securely
While holding each sensor firmly in its adjusted position, tighten the mounting screws. Work carefully to avoid shifting the sensor position as you tighten. Many technicians recommend finger-tightening first, then giving a final quarter-turn with the screwdriver.
Avoid over-tightening, which can crack plastic sensor housings or strip screw threads in the mounting brackets. The sensors should feel secure without any wiggle or movement, but the screws shouldn’t require excessive force to turn.
After tightening the first sensor completely, double-check the alignment with your string and level before moving to the second sensor. If the first sensor shifted during tightening, loosen it slightly and readjust before moving on.
Step 7: Restore Power and Test the Door
Remove the string and level. Reconnect power to your garage door opener by plugging it back in or flipping the circuit breaker to the on position. Wait 30 seconds for the opener to initialize.
Check the LED indicator lights on both sensors. With properly aligned sensors, you should see steady green lights on both units, or one green and one amber/yellow, depending on your system model. Consult your owner’s manual for the correct indicator pattern for your specific sensors.
Press the wall button or remote control to close the garage door. The door should descend smoothly and close completely without reversing. If it closes successfully, your alignment is correct.
How to Test Your Garage Door Sensors After Alignment
Proper alignment gets the door closing again, but you should verify that the safety system functions correctly before considering the job complete.
Perform the block of wood test recommended by garage door safety experts. Open the door fully, then place a block of wood, cardboard box, or similar object in the path of the closing door—positioned where the infrared beam crosses the doorway.
Press the button to close the door. As the door descends and breaks the sensor beam by contacting or approaching the test object, it should immediately stop and reverse direction back to the open position. This confirms your safety reversal system works properly.
If the door doesn’t reverse when it encounters the object, stop the test immediately and disconnect power. The sensors may need readjustment, or there could be a more serious wiring or sensor malfunction requiring professional diagnosis.
Never test sensors by placing hands, feet, or body parts in the door path. Always use inanimate objects for safety testing.
Additional Troubleshooting If Alignment Doesn’t Work
Sometimes proper alignment doesn’t solve the problem, indicating other issues require attention.
Clean the Sensor Lenses: Wipe both sensor lenses with a soft, dry cloth to remove dust, cobwebs, garage grime, or water spots. Even clean-looking lenses may have an invisible film affecting beam transmission.
Inspect for Damaged Wiring: Examine the wires running from each sensor back to the garage door opener. Look for cuts, crimps, disconnections, or damage from pests. Damaged wiring prevents sensors from communicating with the opener, regardless of alignment.
Address Sunlight Interference: Direct sunlight shining into the sensor receiver can overwhelm the infrared detector, especially during certain times of day. If your door works fine at night but fails during sunny afternoons, sunlight interference may be the culprit. Solutions include repositioning sensors slightly, adding a sun shade, or adjusting the sensitivity settings on your opener.
Adjust Sensitivity Settings: Some garage door opener models include sensitivity adjustment controls affecting how the sensors respond to signal disruption. Consult your owner’s manual for adjustment procedures specific to your system.
Check for Obstructions: Ensure nothing near the sensors creates intermittent blockage—accumulated dirt on tracks, hanging tools or storage, or even paint buildup on the tracks themselves.
When to Call a Professional
While sensor alignment is often a manageable DIY project, certain situations require professional expertise and equipment.
Contact a qualified garage door technician if you encounter any of these scenarios:
Damaged Sensors or Brackets: If sensor housings are cracked, mounting brackets are bent or broken, or LED indicators don’t light up even after alignment and cleaning, the sensors may need replacement. Installing new sensors correctly requires understanding of wiring and safety system requirements.
Persistent Alignment Issues: If sensors won’t stay aligned or repeatedly shift out of position after tightening, the mounting system, door tracks, or door balance may have underlying problems needing professional diagnosis.
Wiring Problems: Frayed, cut, or corroded wiring requires proper repair or replacement. Working with electrical systems, even low-voltage sensor wiring, should be left to qualified technicians if you’re not experienced with electrical work.
Warranty Concerns: If your garage door system is under warranty, attempting DIY repairs might void coverage. Check your warranty terms before proceeding with any work.
Safety Uncertainty: If you have any doubts about working safely around your garage door system, or if the door shows signs of spring or cable damage, don’t attempt sensor work yourself. Garage door springs contain significant tension and pose serious injury risks. Before you start adjusting your system, it helps to understand how garage door sensors work so you can troubleshoot alignment issues safely and effectively.
Precision Tools Needed: Some high-end garage door systems require laser alignment tools or specialized diagnostic equipment beyond typical DIY resources.
For homeowners across the Sunshine Coast dealing with stubborn sensor issues, emergency repairs, or comprehensive garage door servicing, Sunshine Coast Garage Door Guys provides qualified technicians familiar with all major Australian garage door brands. Whether you’re in Buderim, Sippy Downs, or anywhere throughout the region, local expertise is available when DIY solutions don’t resolve the problem. Contact (07) 5451 8776 for same-day service or visit sunshinecoastgaragedoorrepairs.com.au for a free quote.
FAQ About Aligning Garage Door Sensors
Do garage door sensors need to line up exactly?
Yes, garage door sensors must align precisely for the infrared beam to transmit clearly from the emitter to the receiver. Even slight vertical misalignment or angular offset can disrupt the signal and prevent the door from closing. Both sensors should sit at exactly the same height, face each other directly, and remain level.
Should both garage door sensors be green?
LED indicator patterns vary by manufacturer and model. Many systems show one green light on the receiver and one amber or yellow light on the emitter when functioning correctly. Others display green on both units. Consult your owner’s manual for your specific system’s normal indicator pattern. Generally, red lights or no lights indicate a problem requiring correction. If you notice a garage door sensor yellow light blinking, it usually indicates a misalignment or obstruction that needs to be corrected before your door can operate safely.
Why is one sensor green and the other yellow?
This is normal for many garage door sensor systems. The green light typically indicates the receiver is detecting the infrared beam from the emitter, while the yellow or amber light shows the emitter is powered and transmitting. This two-color system helps technicians quickly identify which sensor might be malfunctioning if problems occur.
Why does my garage door reverse when closing?
A closing garage door reverses when the safety sensors detect an obstruction or signal disruption. This can result from misaligned sensors, dirty lenses, something blocking the infrared beam path, direct sunlight interference, damaged wiring, or actual objects in the door’s path. Start troubleshooting by checking for obvious obstructions, cleaning sensor lenses, and verifying alignment before investigating electrical issues.
How often should I check garage door sensor alignment?
As part of regular garage door maintenance, inspect sensor alignment every six months. Additionally, check alignment after any impact to the sensors, when you notice the door reversing unexpectedly, or following extreme weather events that might shift door components. Including sensor inspection in your seasonal home maintenance routine helps catch minor alignment drift before it becomes a major inconvenience.
Maintaining Your Garage Door Safety System
Proper sensor alignment is just one aspect of garage door safety and reliability. Beyond the troubleshooting steps covered here, your complete garage door system benefits from regular professional maintenance.
Schedule annual inspections covering door balance, spring tension, roller condition, track alignment, and opener function. Professional technicians can identify worn components before they fail and provide preventative maintenance that extends your system’s lifespan while ensuring continuous safe operation. For a fully smooth and efficient garage door operation, it’s also helpful to check out our garage door rollers guide to ensure all moving parts work seamlessly together.
Keep sensor lenses clean with periodic gentle wiping, ensure mounting brackets remain tight, and teach family members to avoid bumping or placing items near the sensors. These simple habits minimize alignment problems and reduce the need for adjustments.
Most importantly, never bypass, disconnect, or disable your garage door safety sensors to make a problematic door close. These devices exist to prevent serious injuries and fatalities. If sensors require frequent realignment or malfunction persistently, invest in proper repair or replacement rather than compromising your family’s safety.
With the knowledge and steps outlined in this guide, you’re equipped to diagnose and correct common sensor alignment issues confidently. For everything else, qualified professionals throughout the Sunshine Coast stand ready to ensure your garage door operates safely and reliably for years to come.
